A1-18PA-2.54DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 18POS 2.54MM
$2.62
Available to order
Reference Price (USD)
1+
$2.38000
10+
$2.15600
25+
$2.02400
90+
$1.93600
180+
$1.84800
270+
$1.67200
540+
$1.54000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The A1-18PA-2.54DSA(71) by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.454" (11.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 200V
Related Products
Samtec Inc.
TSM-108-04-T-SV-A-P-TR
Amphenol ICC (FCI)
77311-101-00LF
Sullins Connector Solutions
GRPB402VWVN-RC
HARTING
15150682601000
Preci-Dip
450-80-260-01-899101
Samtec Inc.
TSM-115-01-S-SH

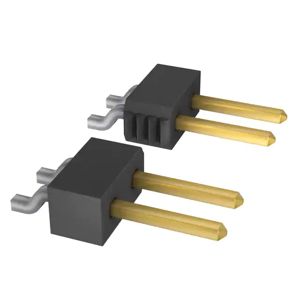

Samtec Inc.
TSM-109-01-LM-SH-K-TR

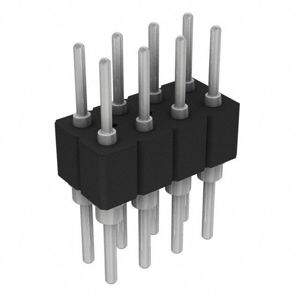

Preci-Dip
451-10-208-00-004101

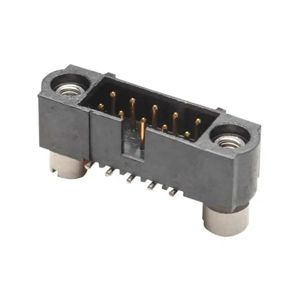

Harwin Inc.
