A1-20PA-2.54DS(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 20POS 2.54MM
$3.49
Available to order
Reference Price (USD)
1+
$2.93000
10+
$2.80800
25+
$2.57400
50+
$2.45700
100+
$2.34000
300+
$2.04750
500+
$1.98900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the A1-20PA-2.54DS(71) rectangular connector header from Hirose Electric Co Ltd for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Hirose Electric Co Ltd is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 200V
Related Products
Preci-Dip
802-10-072-20-001101
Samtec Inc.
FTSH-105-02-S-DV
Amphenol ICC (FCI)
77315-818-08LF
HARTING
09185346323
Samtec Inc.
TMM-115-02-S-D
Samtec Inc.
TSM-107-02-T-SV-002-P
Cvilux USA

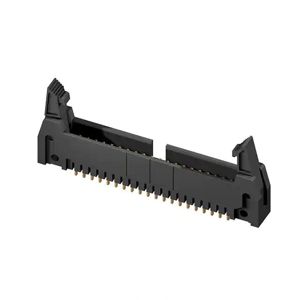

CH88162A100-B
TE Connectivity AMP Connectors

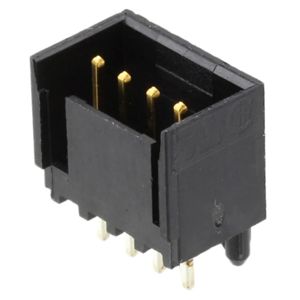

3-644897-4
