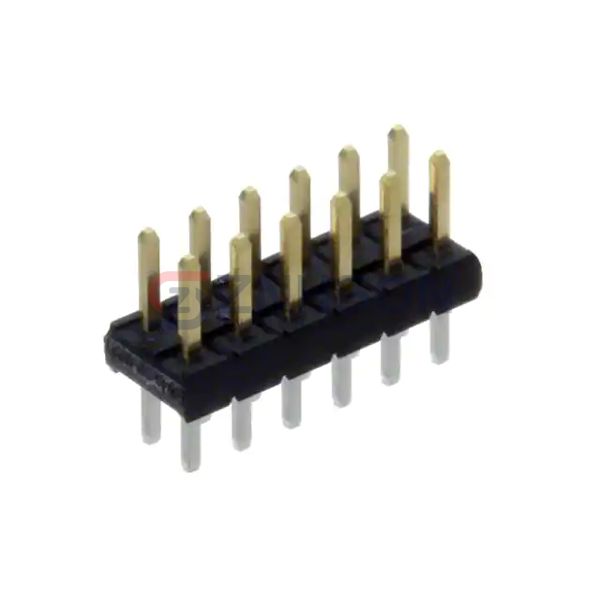

A3B-12PA-2DSA(51)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 12POS 2MM
$0.71
Available to order
Reference Price (USD)
1+
$0.58000
10+
$0.54000
25+
$0.48600
50+
$0.43200
100+
$0.41400
250+
$0.37800
500+
$0.36000
1,000+
$0.29700
2,500+
$0.27000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the A3B-12PA-2DSA(51) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the A3B-12PA-2DSA(51) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: 0.311" (7.90mm)
- Insulation Height: 0.071" (1.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 200VAC
