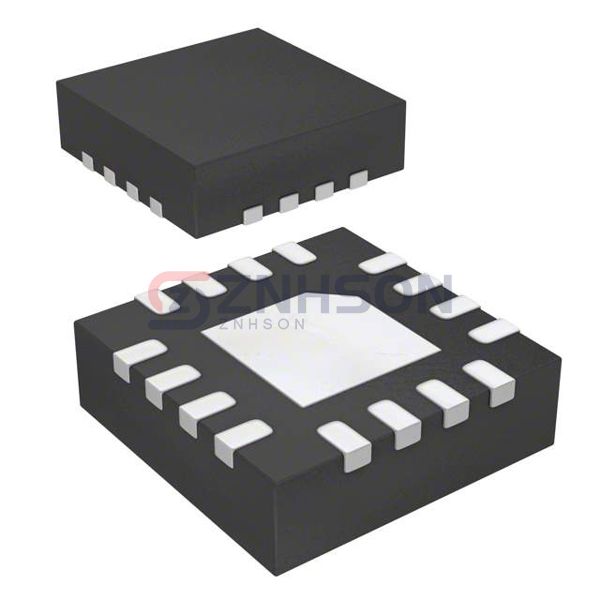

ADCMP582BCPZ-WP
Analog Devices Inc.
Analog Devices Inc.
IC COMPARATOR PECL UFAST 16LFCSP
$20.54
Available to order
Reference Price (USD)
1+
$20.54000
500+
$20.3346
1000+
$20.1292
1500+
$19.9238
2000+
$19.7184
2500+
$19.513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADCMP582BCPZ-WP represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the ADCMP582BCPZ-WP's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: with Latch
- Number of Elements: 1
- Output Type: Complementary, PECL
- Voltage - Supply, Single/Dual (±): ±4.5V ~ 5.5V
- Voltage - Input Offset (Max): 10mV @ ±5V
- Current - Input Bias (Max): 30µA @ ±5V
- Current - Output (Typ): 44mA @ 5V
- Current - Quiescent (Max): 8mA
- CMRR, PSRR (Typ): 60dB CMRR, 75dB PSRR
- Propagation Delay (Max): 0.18ns
- Hysteresis: 1mV
- Operating Temperature: -40°C ~ 125°C
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Mounting Type: Surface Mount
- Supplier Device Package: 16-LFCSP (3x3)
Related Products
Analog Devices Inc./Maxim Integrated
MAX9012ESA+
Texas Instruments
LM2901DRG3
Analog Devices Inc.
AD96687BPZ
Analog Devices Inc./Maxim Integrated
MAX9022AUA+
Harris Corporation
HA9P4905-5
Analog Devices Inc.
LT1116CS8#PBF
Analog Devices Inc./Maxim Integrated
MAX922EPA+
Analog Devices Inc.

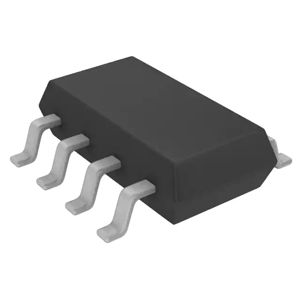

LTC6702HTS8#TRMPBF
