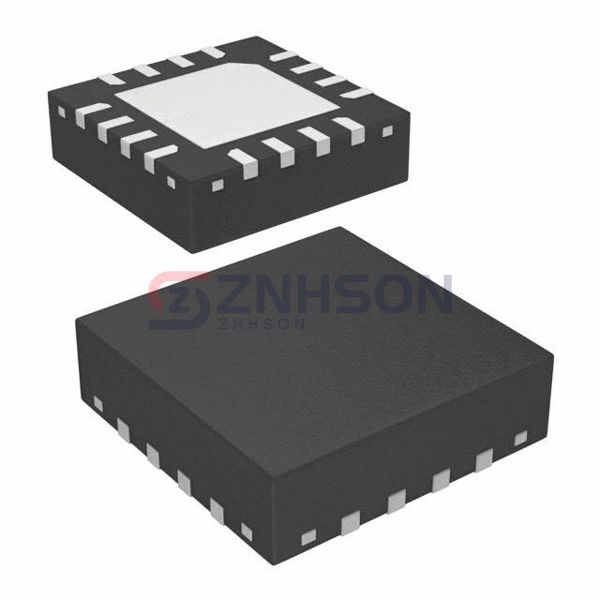

ADG1208YCPZ-REEL
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER 8X1 16LFCSP
$7.67
Available to order
Reference Price (USD)
1+
$7.67000
500+
$7.5933
1000+
$7.5166
1500+
$7.4399
2000+
$7.3632
2500+
$7.2865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1208YCPZ-REEL represents Analog Devices Inc.'s cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 95ns, 100ns
- -3db Bandwidth: 550MHz
- Charge Injection: 0.4pC
- Channel Capacitance (CS(off), CD(off)): 1.5pF, 7pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-VQ (4x4)
