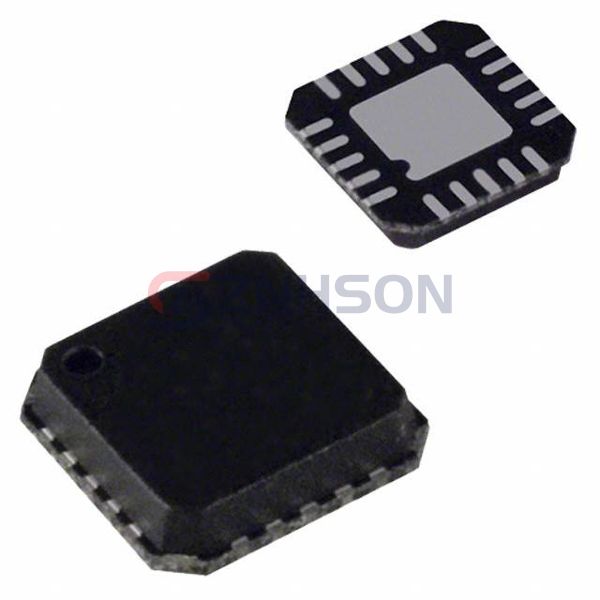

ADG1234YCPZ-REEL
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPDT 20LFCSP
$5.04
Available to order
Reference Price (USD)
5,000+
$3.85063
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1234YCPZ-REEL from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The ADG1234YCPZ-REEL is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 190Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 140ns, 45ns
- -3db Bandwidth: 900MHz
- Charge Injection: 0.5pC
- Channel Capacitance (CS(off), CD(off)): 1.7pF, 1.8pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
