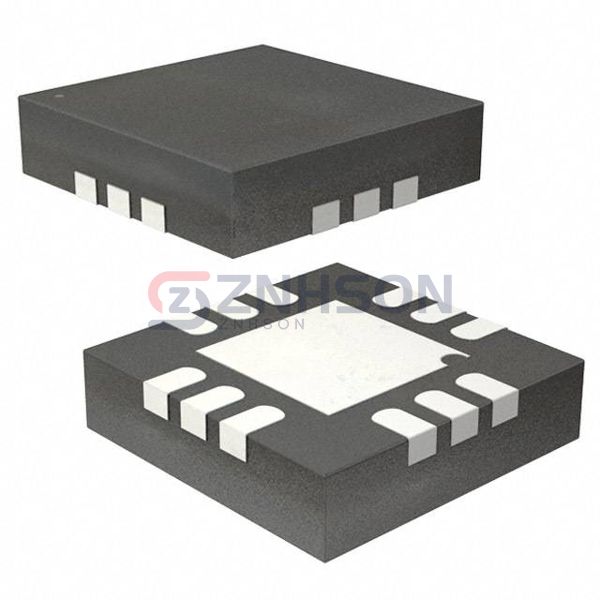

ADG1236YCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH DUAL SPDT 12LFCSP
$6.18
Available to order
Reference Price (USD)
1,500+
$2.82800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1236YCPZ-REEL7 from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG1236YCPZ-REEL7 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 190Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 150ns, 90ns
- -3db Bandwidth: 1GHz
- Charge Injection: -1pC
- Channel Capacitance (CS(off), CD(off)): 1.6pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFQFN Exposed Pad, CSP
- Supplier Device Package: 12-LFCSP (3x3)
