ADG1309BRZ
Analog Devices Inc.
Analog Devices Inc.

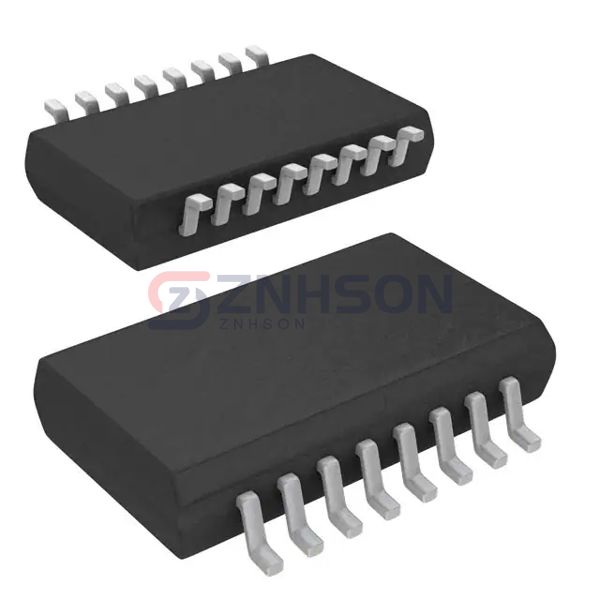

IC MULTIPLEXER DUAL 4X1 16SOIC
$2.08
Available to order
Reference Price (USD)
1+
$2.08000
500+
$2.0592
1000+
$2.0384
1500+
$2.0176
2000+
$1.9968
2500+
$1.976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADG1309BRZ Analog Switch solution by Analog Devices Inc., engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The ADG1309BRZ delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 210Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 100ns, 100ns
- -3db Bandwidth: 500MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 10pF, 15pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
