ADG1309BRZ-REEL7
Analog Devices Inc.
Analog Devices Inc.

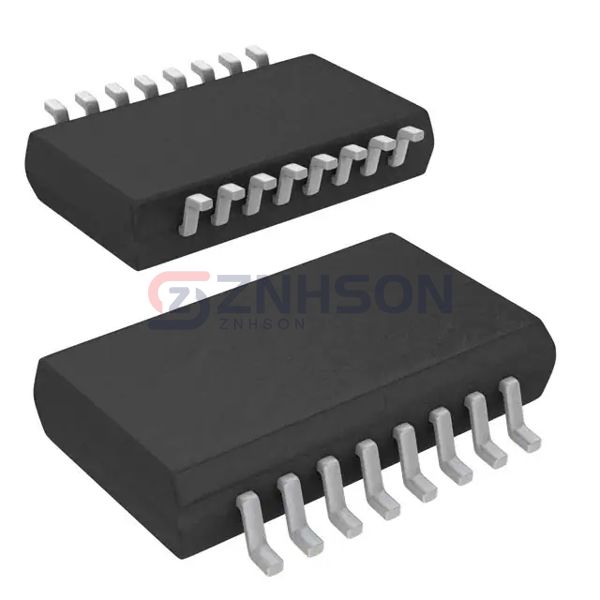

IC MULTIPLEXER DUAL 4X1 16SOIC
$4.00
Available to order
Reference Price (USD)
1,000+
$2.13514
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG1309BRZ-REEL7 redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ADG1309BRZ-REEL7 is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 210Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 100ns, 100ns
- -3db Bandwidth: 500MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 10pF, 15pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
