ADG1313YRZ-REEL7
Analog Devices Inc.
Analog Devices Inc.

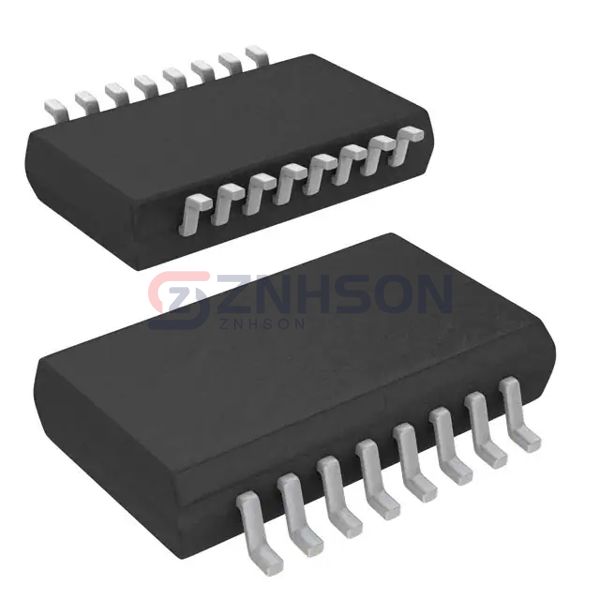

IC SWITCH QUAD SPST 16SOIC
$2.07
Available to order
Reference Price (USD)
1,000+
$1.64024
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1313YRZ-REEL7 from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The ADG1313YRZ-REEL7 is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 125ns, 50ns
- -3db Bandwidth: 600MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
