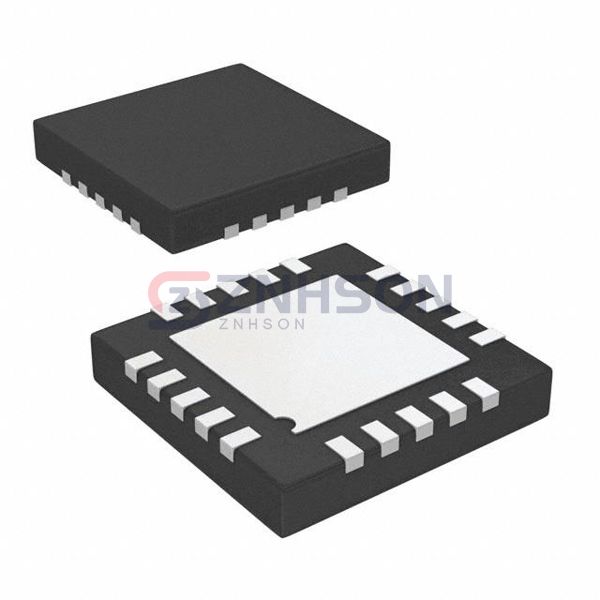

ADG1434YCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPDT 20LFCSP
$9.44
Available to order
Reference Price (USD)
1,500+
$4.63590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG1434YCPZ-REEL7 sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The ADG1434YCPZ-REEL7 is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 4.7Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 170ns, 75ns
- -3db Bandwidth: 200MHz
- Charge Injection: -50pC
- Channel Capacitance (CS(off), CD(off)): 12pF, 22pF
- Current - Leakage (IS(off)) (Max): 300pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
