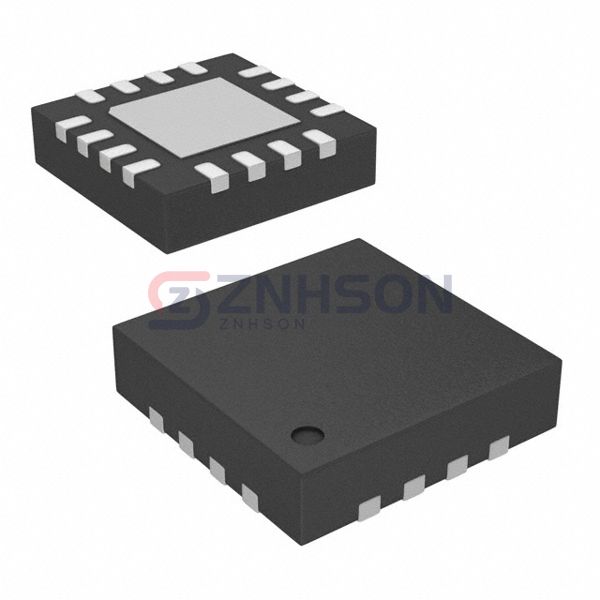

ADG1609BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER DL 4X1 16LFCSP
$6.29
Available to order
Reference Price (USD)
1,500+
$2.88456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the ADG1609BCPZ-REEL7 by Analog Devices Inc. delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The ADG1609BCPZ-REEL7 excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): 120mOhm
- Voltage - Supply, Single (V+): 3.3V ~ 16V
- Voltage - Supply, Dual (V±): ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max): 94ns, 93ns
- -3db Bandwidth: 78MHz
- Charge Injection: 29pC
- Channel Capacitance (CS(off), CD(off)): 19pF, 59pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
