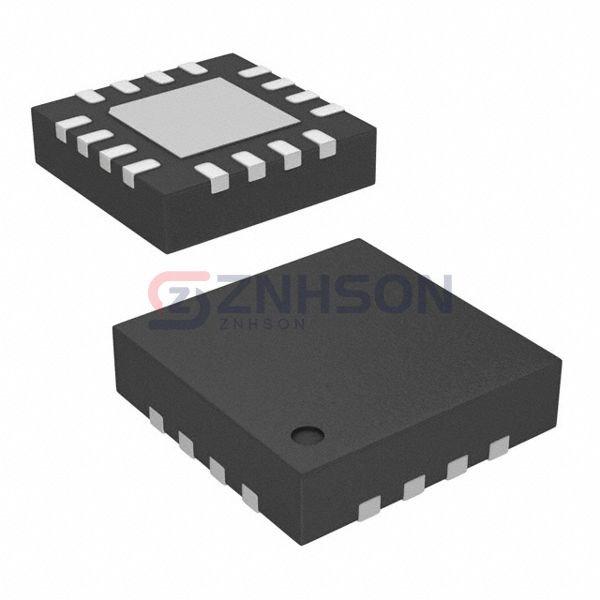

ADG1633BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH TRPL SPDT 16LFCSP
$5.48
Available to order
Reference Price (USD)
1,500+
$2.50278
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ADG1633BCPZ-REEL7 - Analog Devices Inc.'s most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The ADG1633BCPZ-REEL7 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): 120mOhm
- Voltage - Supply, Single (V+): 3.3V ~ 16V
- Voltage - Supply, Dual (V±): ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max): 38ns, 152ns
- -3db Bandwidth: 109MHz
- Charge Injection: -12.4pC
- Channel Capacitance (CS(off), CD(off)): 19pF, 32pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
