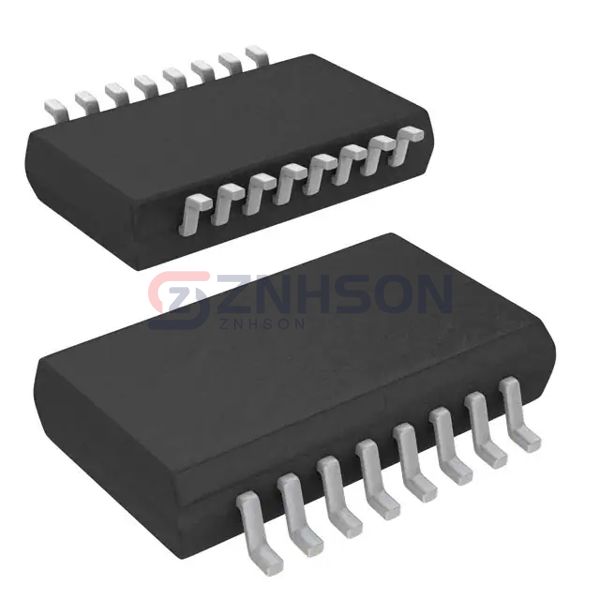

ADG509AKRZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER DUAL 4X1 16SOIC
$8.30
Available to order
Reference Price (USD)
1+
$8.30000
500+
$8.217
1000+
$8.134
1500+
$8.051
2000+
$7.968
2500+
$7.885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG509AKRZ-REEL7 from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The ADG509AKRZ-REEL7 is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): 22.5Ohm
- Voltage - Supply, Single (V+): 10.8V ~ 16.5V
- Voltage - Supply, Dual (V±): ±10.8V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 300ns, 300ns
- -3db Bandwidth: -
- Charge Injection: 4pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 11pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
