ADG509FBRWZ
Analog Devices Inc.
Analog Devices Inc.

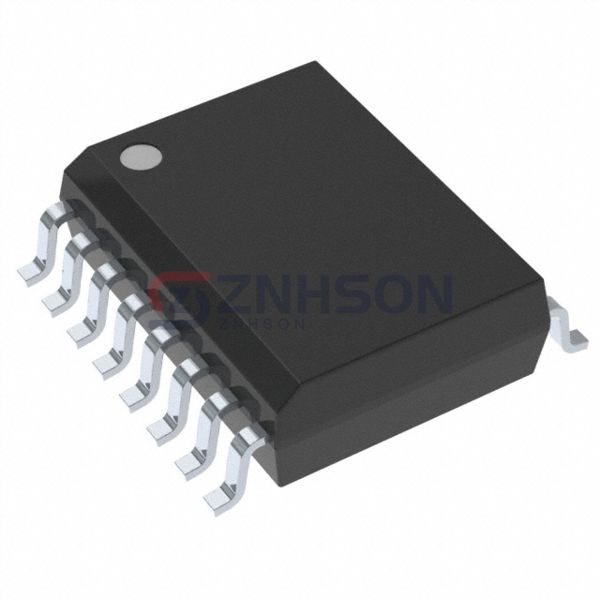

IC MULTIPLEXER DUAL 4X1 16SOIC
$10.82
Available to order
Reference Price (USD)
1+
$8.97000
47+
$7.72298
141+
$6.70582
517+
$5.83932
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG509FBRWZ from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG509FBRWZ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 270Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 8.1Ohm
- Voltage - Supply, Single (V+): 15V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 230ns, 130ns
- -3db Bandwidth: -
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 12pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
