ADG511BRZ
Analog Devices Inc.
Analog Devices Inc.

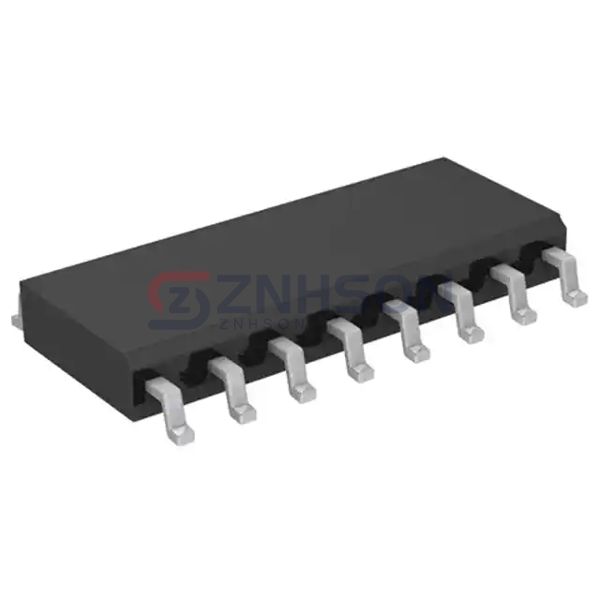

IC SWITCH QUAD SPST 16SOIC
$9.44
Available to order
Reference Price (USD)
1+
$6.80000
48+
$5.85958
144+
$5.08778
528+
$4.43036
1,008+
$3.85870
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADG511BRZ Analog Switch solution by Analog Devices Inc., engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The ADG511BRZ delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 30Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 200ns, 120ns (Typ)
- -3db Bandwidth: -
- Charge Injection: 11pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 9pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
