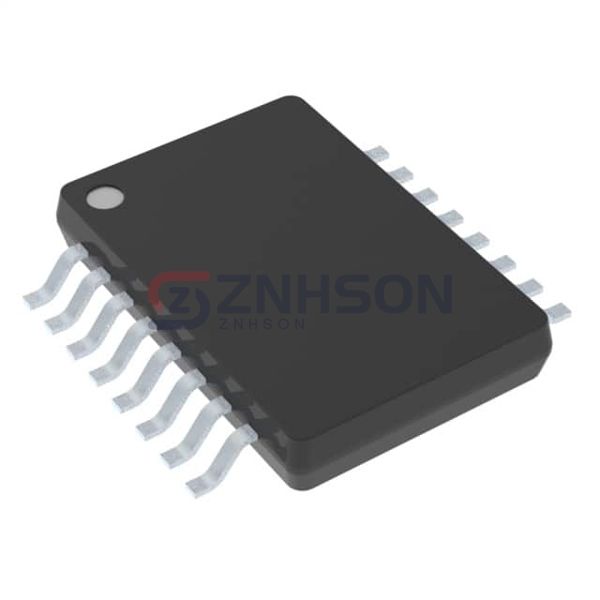

ADG5249FBRUZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER 4X1 20TSSOP
$11.82
Available to order
Reference Price (USD)
1,000+
$6.58571
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG5249FBRUZ-RL7 from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The ADG5249FBRUZ-RL7 is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 335Ohm
- Channel-to-Channel Matching (ΔRon): 3Ohm
- Voltage - Supply, Single (V+): 8V ~ 44V
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 245ns, 135ns
- -3db Bandwidth: 320MHz
- Charge Injection: -1.2pC
- Channel Capacitance (CS(off), CD(off)): 4pF, 7pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -75dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 20-TSSOP
