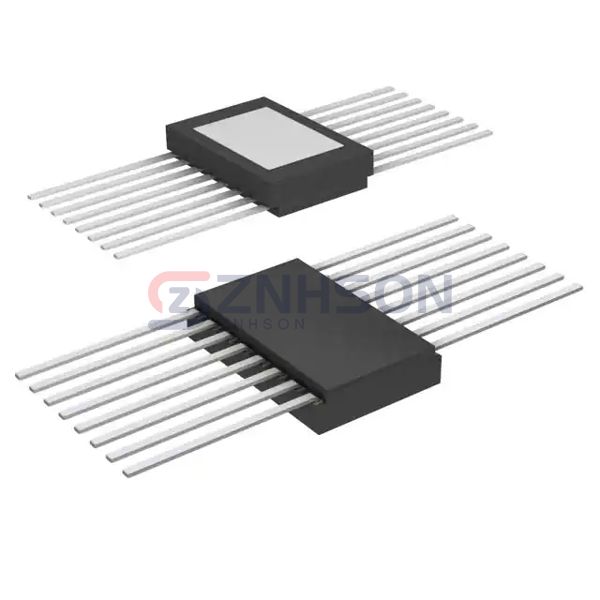

ADG5298HFZ
Analog Devices Inc.
Analog Devices Inc.
IC MUX/DEMUX 8:1 16FLATPACK
$204.48
Available to order
Reference Price (USD)
1+
$177.12000
19+
$169.63947
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG5298HFZ redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ADG5298HFZ is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 350Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 245ns, 260ns
- -3db Bandwidth: 121MHz
- Charge Injection: 0.4pC
- Channel Capacitance (CS(off), CD(off)): 2.8pF, 33pF
- Current - Leakage (IS(off)) (Max): 8nA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -55°C ~ 210°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-CFlatPack
- Supplier Device Package: 16-CFlatPack
