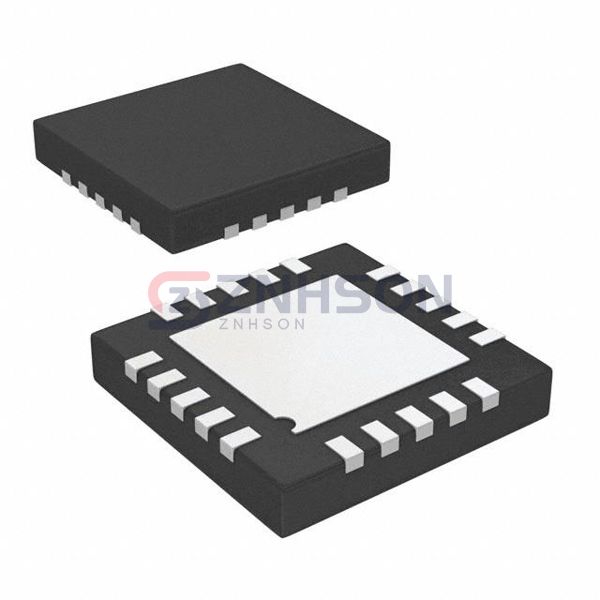

ADG5434BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SW ANLG QUAD SPDT 20LFCSP
$8.43
Available to order
Reference Price (USD)
1,500+
$4.14504
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the ADG5434BCPZ-REEL7 by Analog Devices Inc. delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The ADG5434BCPZ-REEL7 excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 14Ohm
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 186ns, 104ns
- -3db Bandwidth: 140MHz
- Charge Injection: 176pC
- Channel Capacitance (CS(off), CD(off)): 15pF, 23pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
Related Products
Vishay Siliconix
DG333ALDW-T1-E3
Analog Devices Inc./Maxim Integrated
MAX4634ETB
Analog Devices Inc.
ADG1409YRUZ-REEL7
Analog Devices Inc./Maxim Integrated
MAX329CWE+T
Analog Devices Inc./Maxim Integrated

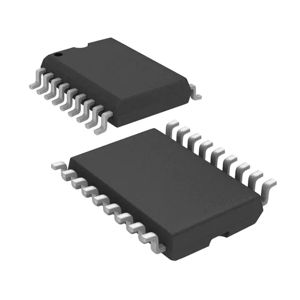

MAX349CWN+
