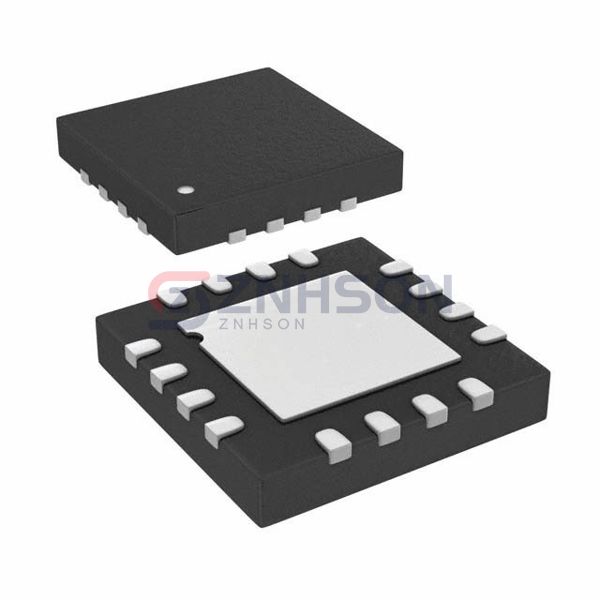

ADG5436FBCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH DUAL SPDT 16LFCSP
$10.72
Available to order
Reference Price (USD)
1,500+
$5.26311
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG5436FBCPZ-RL7 by Analog Devices Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The ADG5436FBCPZ-RL7 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 8V ~ 44V
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 535ns, 205ns
- -3db Bandwidth: 171MHz
- Charge Injection: -737pC
- Channel Capacitance (CS(off), CD(off)): 11pF, 23pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -73dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (4x4)
