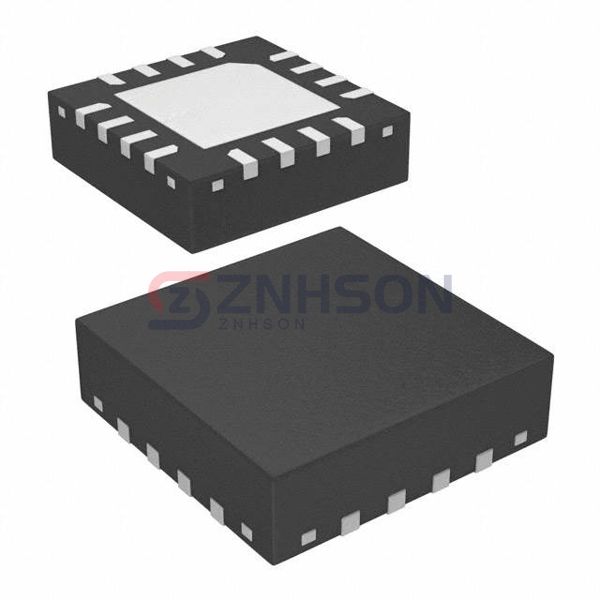

ADG633YCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH TRIPLE SPDT 16LFCSP
$3.10
Available to order
Reference Price (USD)
1,500+
$1.31805
3,000+
$1.22715
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG633YCPZ-REEL7 by Analog Devices Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The ADG633YCPZ-REEL7 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 75Ohm
- Channel-to-Channel Matching (ΔRon): 800mOhm
- Voltage - Supply, Single (V+): 2V ~ 12V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): 95ns, 40ns
- -3db Bandwidth: 580MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 4pF, 7pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-VQ (4x4)
