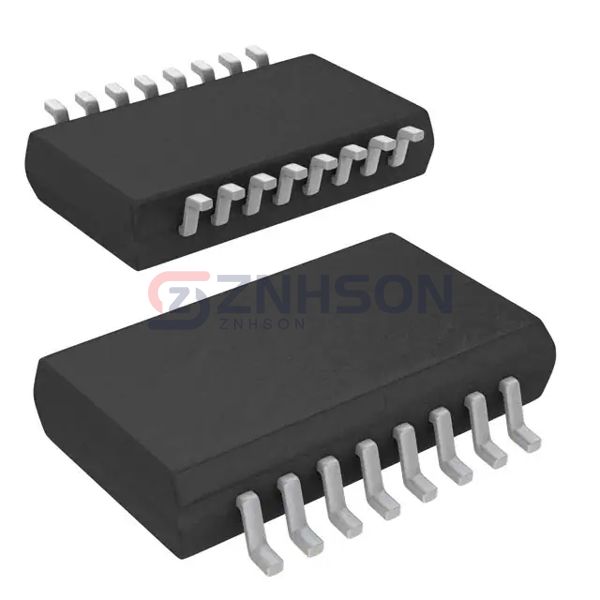

ADG713BRZ
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST 16SOIC
$4.30
Available to order
Reference Price (USD)
1+
$3.56000
48+
$3.02250
144+
$2.61944
528+
$2.22989
1,008+
$1.88062
2,544+
$1.78659
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG713BRZ from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG713BRZ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 4Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 11ns, 6ns (Typ)
- -3db Bandwidth: 200MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 10pF, 10pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
