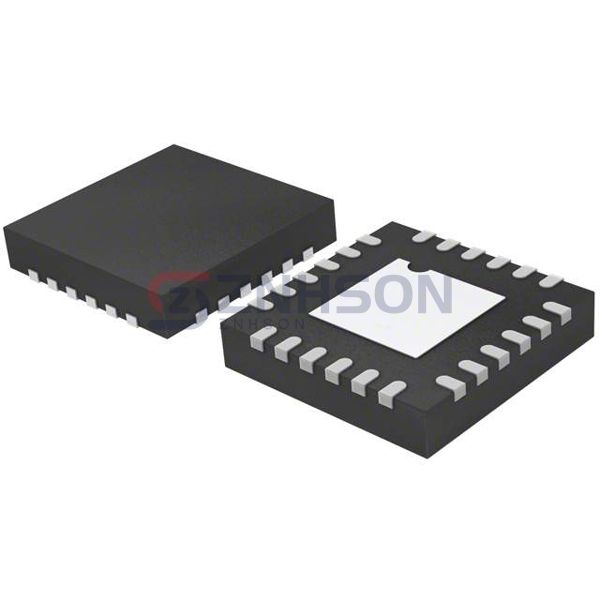

ADG714BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST OCTAL 24LFCSP
$5.59
Available to order
Reference Price (USD)
1+
$5.59000
500+
$5.5341
1000+
$5.4782
1500+
$5.4223
2000+
$5.3664
2500+
$5.3105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG714BCPZ-REEL7 from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG714BCPZ-REEL7 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 8
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2.7V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 20ns, 8ns (Typ)
- -3db Bandwidth: 155MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 11pF, 11pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP-WQ (4x4)
