ADG759BCPZ
Analog Devices Inc.
Analog Devices Inc.

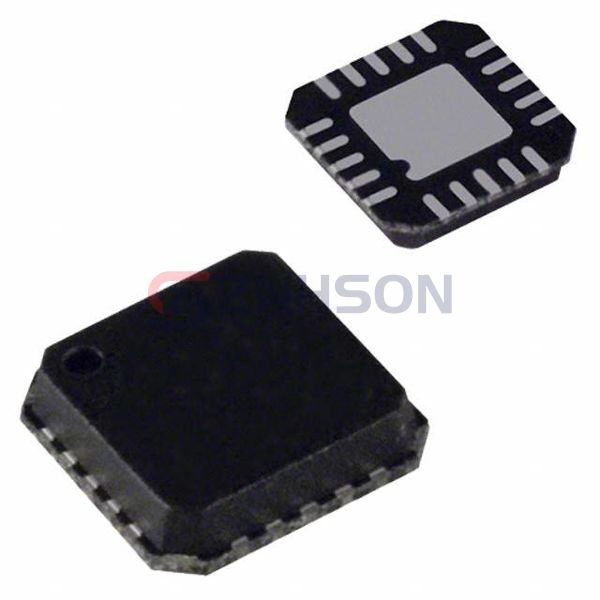

IC MULTIPLEXER DUAL 4X1 20LFCSP
$5.03
Available to order
Reference Price (USD)
1+
$4.36000
10+
$3.91800
490+
$3.04565
980+
$2.73286
1,470+
$2.30482
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG759BCPZ from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG759BCPZ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 14ns, 8ns (Typ)
- -3db Bandwidth: 55MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 13pF, 42pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
