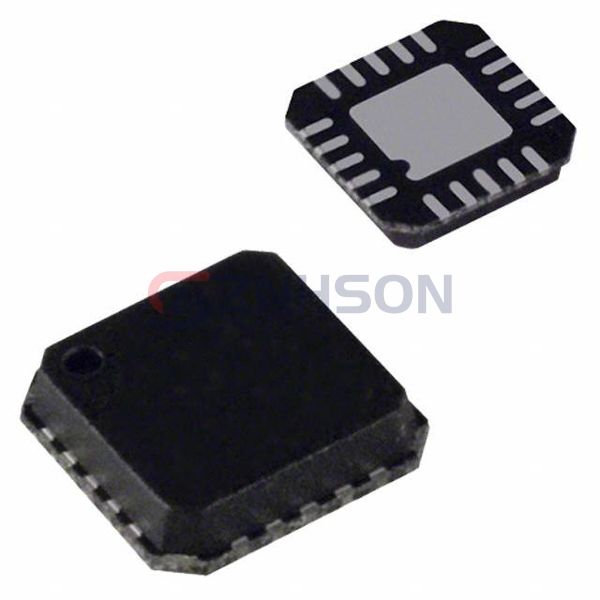

ADG784BCPZ
Analog Devices Inc.
Analog Devices Inc.
IC MUX/DEMUX QUAD 2X1 20LFCSP
$6.18
Available to order
Reference Price (USD)
1+
$5.35000
10+
$4.80800
490+
$3.73700
980+
$3.35320
1,470+
$2.82800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG784BCPZ from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG784BCPZ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 2.2Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 3.3V, 5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 240MHz
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 10pF, 20pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -75dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
