ADG787BCBZ-REEL7
Analog Devices Inc.
Analog Devices Inc.

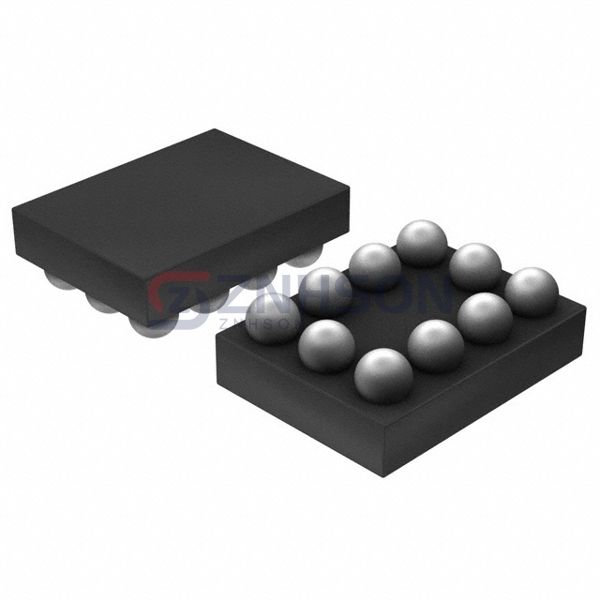

IC MUX/DEMUX DUAL 2X1 10WLCSP
$1.72
Available to order
Reference Price (USD)
3,000+
$1.30896
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ADG787BCBZ-REEL7 - Analog Devices Inc.'s most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The ADG787BCBZ-REEL7 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 3Ohm
- Channel-to-Channel Matching (ΔRon): 20mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 19ns, 5ns
- -3db Bandwidth: 145MHz
- Charge Injection: 14pC
- Channel Capacitance (CS(off), CD(off)): 16pF
- Current - Leakage (IS(off)) (Max): 50pA (Typ)
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -20°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFBGA, WLCSP
- Supplier Device Package: 10-WLCSP (2x1.5)
