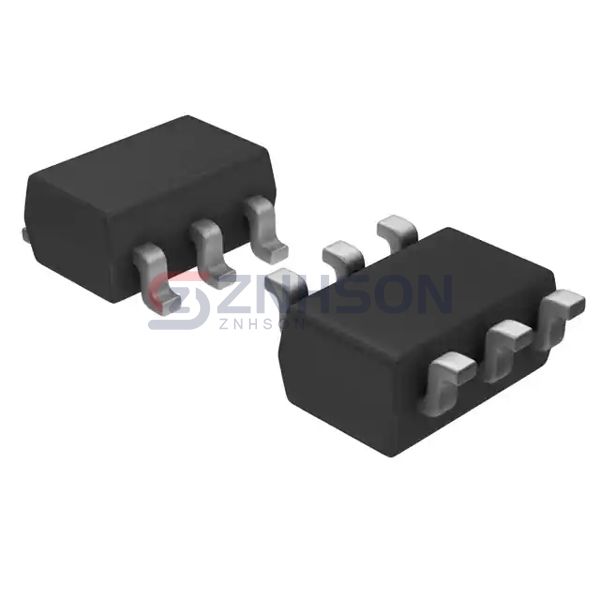

ADG802BRTZ-500RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST SOT23-6
$3.68
Available to order
Reference Price (USD)
500+
$1.82750
1,000+
$1.54126
2,500+
$1.46420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG802BRTZ-500RL7 from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG802BRTZ-500RL7 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 300mOhm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 45ns, 15ns
- -3db Bandwidth: 12MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 180pF, 180pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
