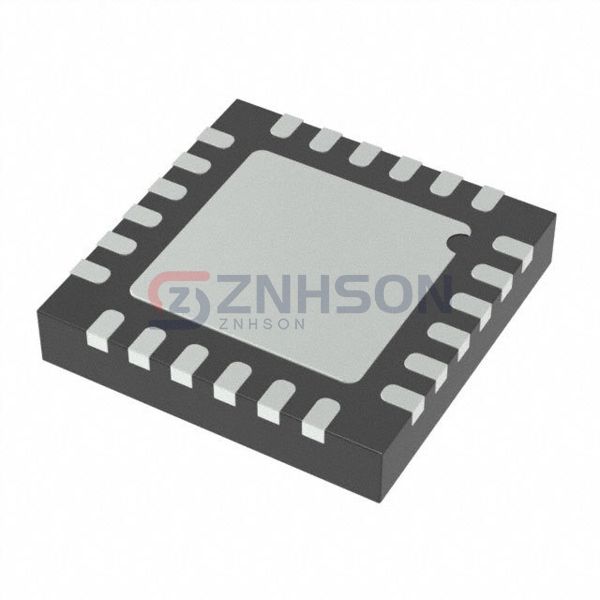

ADGS1209BCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH DUAL 24LFCSP
$7.71
Available to order
Reference Price (USD)
1,500+
$6.36755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADGS1209BCPZ-RL7 by Analog Devices Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The ADGS1209BCPZ-RL7 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 110ns, 135ns
- -3db Bandwidth: 630MHz
- Charge Injection: 0.4pC
- Channel Capacitance (CS(off), CD(off)): 1pF, 2pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
