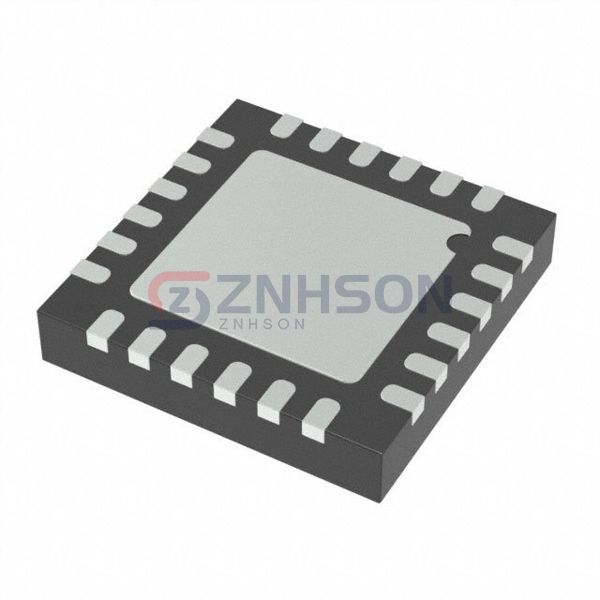

ADGS1409BCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH DUAL 24LFCSP
$12.78
Available to order
Reference Price (USD)
1,500+
$7.01203
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc.'s ADGS1409BCPZ-RL7, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ADGS1409BCPZ-RL7 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4.7Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 165ns, 155ns
- -3db Bandwidth: 115MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 14pF, 40pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-VFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
