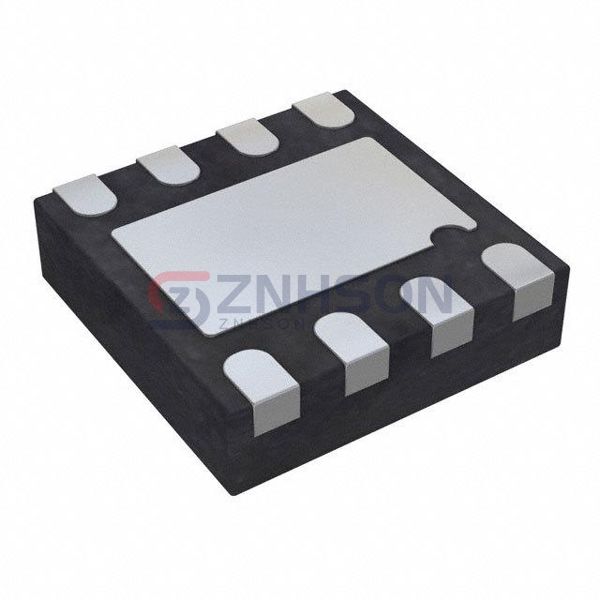

ADM7155ACPZ-02-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN POS ADJ 600MA 8LFCSP
$6.48
Available to order
Reference Price (USD)
1,500+
$3.02596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADM7155ACPZ-02-R7 from Analog Devices Inc. is a high-performance PMIC - Voltage Regulators - Linear IC designed to deliver stable and efficient voltage regulation for a wide range of electronic applications. This integrated circuit ensures precise voltage control, low dropout, and excellent thermal performance, making it ideal for power-sensitive devices. With its compact design and robust construction, the ADM7155ACPZ-02-R7 is a reliable choice for engineers and designers seeking top-tier linear voltage regulators.
PMIC - Voltage Regulators - Linear ICs are essential components in modern electronics, providing critical voltage regulation to ensure the smooth operation of circuits. The ADM7155ACPZ-02-R7 stands out in this category with its low noise output, high accuracy, and fast transient response. These features make it suitable for applications where consistent voltage levels are crucial, such as in communication systems, automotive electronics, and industrial control systems.
The ADM7155ACPZ-02-R7 is widely used in various industries, including telecommunications, automotive, and consumer electronics. For instance, it can be found in power supplies for routers and modems, voltage stabilization in car infotainment systems, and battery-powered portable devices. Its versatility and reliability make it a go-to solution for designers looking to enhance the performance and longevity of their electronic products.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 2.4V
- Voltage Dropout (Max): 0.21V @ 600mA
- Current - Output: 600mA
- Current - Quiescent (Iq): 7 mA
- Current - Supply (Max): 10 mA
- PSRR: 94dB ~ 61dB (1kHz ~ 1MHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP-WD (3x3)
Related Products
ABLIC Inc.
S-13R1A17-A4T2U3
Diodes Incorporated
AP7361-18D-13
Microchip Technology
MIC5232-1.2YML-TR
Analog Devices Inc./Maxim Integrated
MAX8891EXK31+T
Nisshinbo Micro Devices Inc.
RP173Q122B-TR-FE
Diodes Incorporated
AP2114H-3.3TRG1
onsemi
SZ1N5919BRL
Nisshinbo Micro Devices Inc.
RP130Q331D-TR-FE
Infineon Technologies

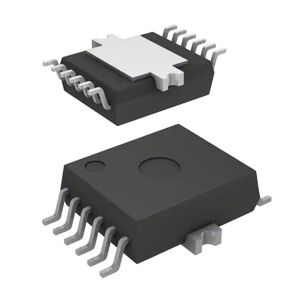

TLE4473G V52
