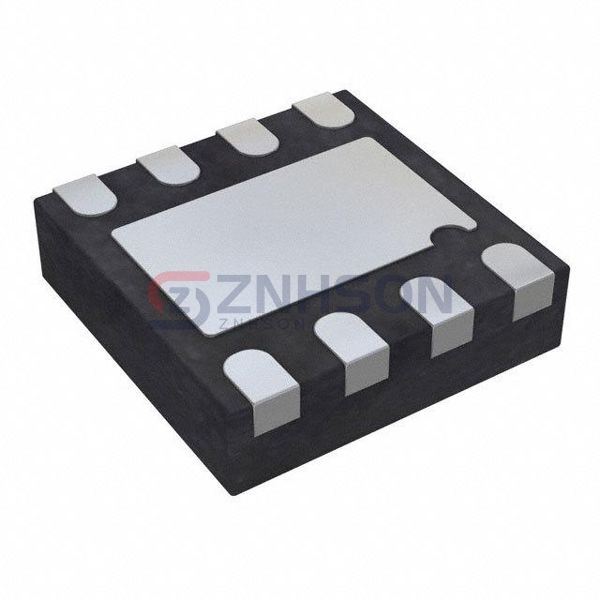

ADM7155ACPZ-04-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN POS ADJ 600MA 8LFCSP
$6.48
Available to order
Reference Price (USD)
1,500+
$3.02596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADM7155ACPZ-04-R7 by Analog Devices Inc. is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications.
In the PMIC - Voltage Regulators - Linear category, the ADM7155ACPZ-04-R7 stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions.
The ADM7155ACPZ-04-R7 is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 3.4V
- Voltage Dropout (Max): 0.21V @ 600mA
- Current - Output: 600mA
- Current - Quiescent (Iq): 7 mA
- Current - Supply (Max): 10 mA
- PSRR: 94dB ~ 57dB (1kHz ~ 1MHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP-WD (3x3)
