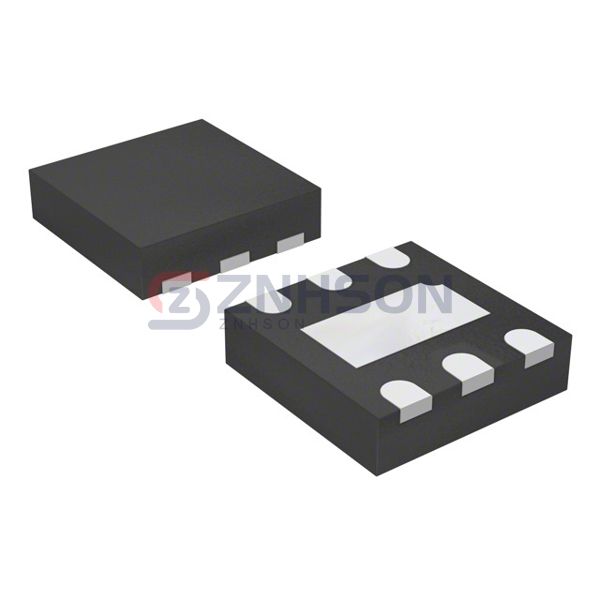

ADM7160ACPZN1.8-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 1.8V 200MA 6LFCSP

Datasheet:

ADM7160ACPZN1.8-R7 Datasheet

$1.56

Available to order

Reference Price (USD)

3,000+

$0.63630

6,000+

$0.60449

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ADM7160ACPZN1.8-R7 from Analog Devices Inc. is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the ADM7160ACPZN1.8-R7 provides the reliability you need. As a member of the PMIC - Voltage Regulators - Linear family, the ADM7160ACPZN1.8-R7 excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications. The ADM7160ACPZN1.8-R7 is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.23V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 20 µA
Current - Supply (Max): 350 µA
PSRR: 54dB ~ 43dB (100kHz ~ 1MHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 6-UDFN Exposed Pad, CSP
Supplier Device Package: 6-LFCSP-UD (2x2)
