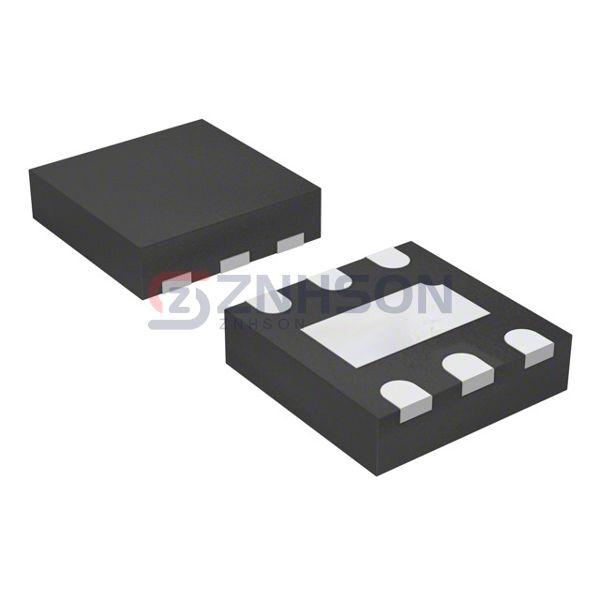

ADM7160ACPZN3.3-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 3.3V 200MA 6LFCSP

Datasheet:

ADM7160ACPZN3.3-R7 Datasheet

$1.56

Available to order

Reference Price (USD)

3,000+

$0.63630

6,000+

$0.60449

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ADM7160ACPZN3.3-R7 by Analog Devices Inc. is a standout in the PMIC - Voltage Regulators - Linear category, offering unparalleled voltage regulation for a variety of electronic systems. This IC is designed to provide consistent and reliable power, with features such as low dropout voltage, high output accuracy, and excellent load transient response. Whether you're designing for high-performance or energy-efficient applications, the ADM7160ACPZN3.3-R7 delivers the precision and reliability you need. PMIC - Voltage Regulators - Linear ICs are critical for maintaining voltage stability in electronic circuits, and the ADM7160ACPZN3.3-R7 is no exception. It boasts a wide input voltage range, making it adaptable to diverse power sources. Additionally, its low noise output ensures minimal interference with sensitive components, which is crucial for audio and RF applications. Applications of the ADM7160ACPZN3.3-R7 span across industries such as aerospace, telecommunications, and renewable energy. For instance, it is used in satellite communication systems, base station power supplies, and solar power inverters. Its robust design and high efficiency make it a trusted component for engineers working on cutting-edge technologies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 3.3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.23V @ 200mA
Current - Output: 200mA
Current - Quiescent (Iq): 20 µA
Current - Supply (Max): 350 µA
PSRR: 54dB ~ 43dB (100kHz ~ 1MHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 6-UDFN Exposed Pad, CSP
Supplier Device Package: 6-LFCSP-UD (2x2)
