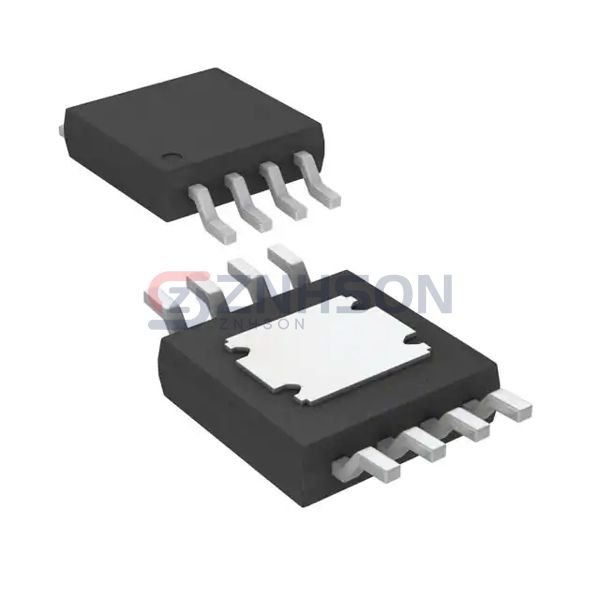

ADP124ARHZ-2.85-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 2.85V 500MA 8MSOP

Datasheet:

ADP124ARHZ-2.85-R7 Datasheet

$1.21

Available to order

Reference Price (USD)

1,000+

$0.99586

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ADP124ARHZ-2.85-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 2.85V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.23V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 105 µA
Current - Supply (Max): 280 µA
PSRR: 60dB (10kHz ~ 100kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 8-MSOP-EP
