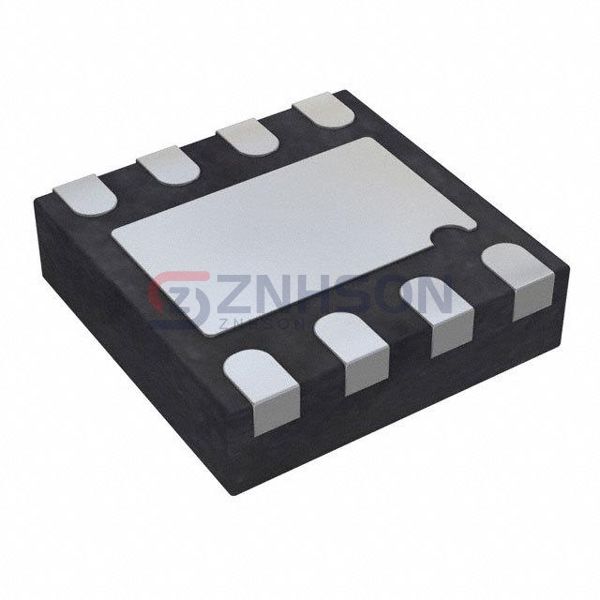

ADP1706ACPZ-1.0-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 1V 1A 8LFCSP
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADP1706ACPZ-1.0-R7, a premium PMIC - Voltage Regulators - Linear IC from Analog Devices Inc., engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The ADP1706ACPZ-1.0-R7 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments.
Linear voltage regulators like the ADP1706ACPZ-1.0-R7 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The ADP1706ACPZ-1.0-R7 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability.
The ADP1706ACPZ-1.0-R7 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 390 µA
- Current - Supply (Max): 1.55 mA
- PSRR: -
- Control Features: Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP (3x3)
Related Products
STMicroelectronics
LD2980ABM50TR
ABLIC Inc.
S-1135A19-U5T1G
ABLIC Inc.
S-1206B51-M3T1G
Nisshinbo Micro Devices Inc.
RP109K081D-TR
onsemi
NCP156ABFCT110280T2G
onsemi
NCP4680DMX10TCG
ABLIC Inc.
S-1167B22-M5T1G
Diodes Incorporated
AP7315-31SR-7
Texas Instruments

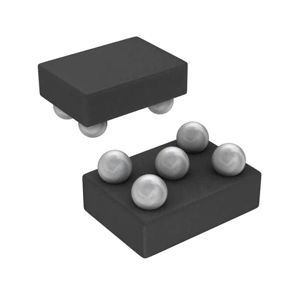

TPS79920YZUR
