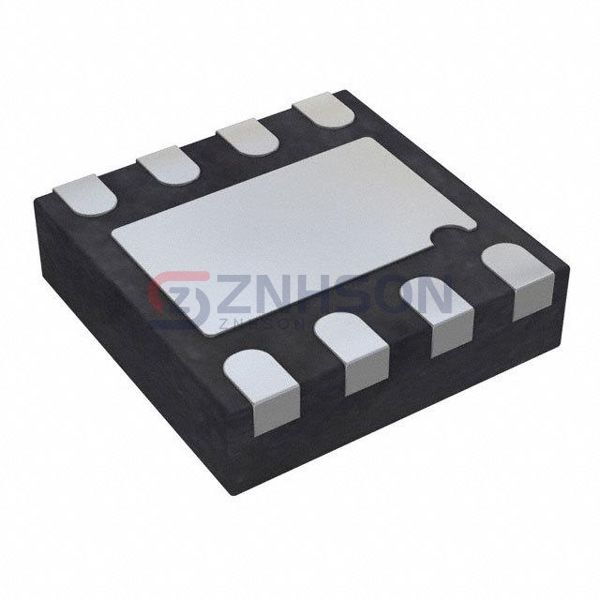

ADP1706ACPZ-1.1-R7
Analog Devices Inc.

Analog Devices Inc.
IC REG LINEAR 1.1V 1A 8LFCSP
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP1706ACPZ-1.1-R7 from Analog Devices Inc. is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the ADP1706ACPZ-1.1-R7 provides the reliability you need.
As a member of the PMIC - Voltage Regulators - Linear family, the ADP1706ACPZ-1.1-R7 excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications.
The ADP1706ACPZ-1.1-R7 is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.1V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 390 µA
- Current - Supply (Max): 1.55 mA
- PSRR: -
- Control Features: Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP (3x3)
