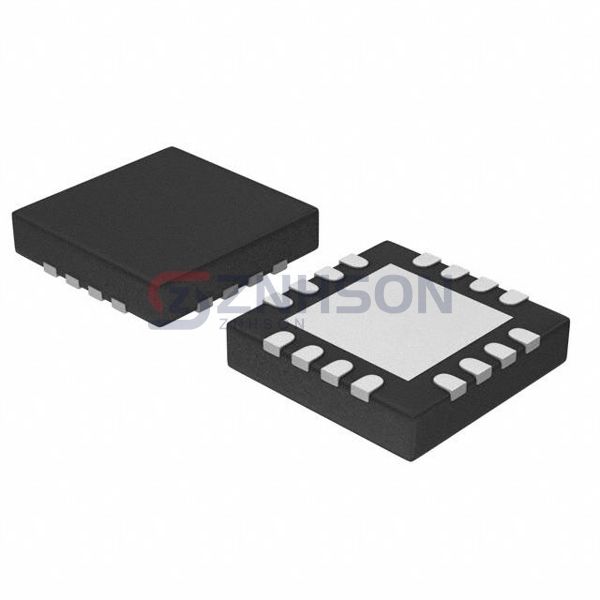

ADP1741ACPZ-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR POS ADJ 2A 16LFCSP
$4.19
Available to order
Reference Price (USD)
1,500+
$1.75336
3,000+
$1.66569
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP1741ACPZ-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 3.6V
- Voltage - Output (Min/Fixed): 0.75V
- Voltage - Output (Max): 3.3V
- Voltage Dropout (Max): 0.28V @ 2A
- Current - Output: 2A
- Current - Quiescent (Iq): 800 µA
- Current - Supply (Max): 1.8 mA
- PSRR: 65dB ~ 51dB (1kHz ~ 100kHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (4x4)
