ADP1753ACPZ-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN POS ADJ 800MA 16LFCSP
$3.15
Available to order
Reference Price (USD)
1,500+
$1.36199
3,000+
$1.26806
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADP1753ACPZ-R7, a premium PMIC - Voltage Regulators - Linear IC from Analog Devices Inc., engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The ADP1753ACPZ-R7 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments.
Linear voltage regulators like the ADP1753ACPZ-R7 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The ADP1753ACPZ-R7 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability.
The ADP1753ACPZ-R7 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 3.6V
- Voltage - Output (Min/Fixed): 0.75V
- Voltage - Output (Max): 3.3V
- Voltage Dropout (Max): 0.14V @ 800mA
- Current - Output: 800mA
- Current - Quiescent (Iq): 800 µA
- Current - Supply (Max): 1.2 mA
- PSRR: 65dB ~ 51dB (1kHz ~ 100kHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount

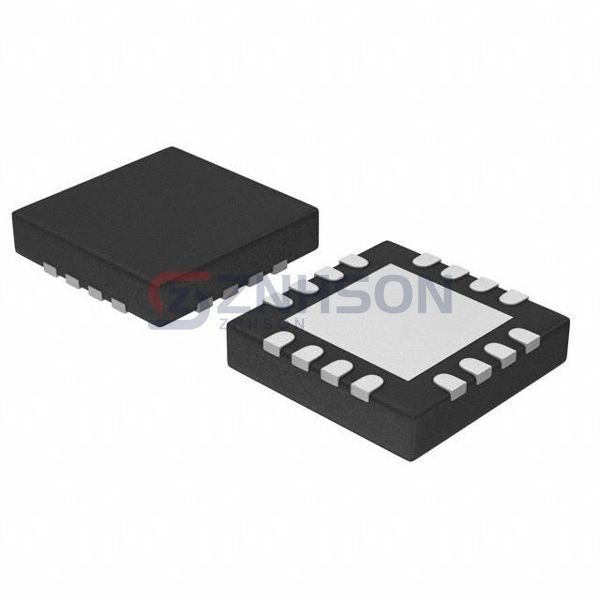

- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (4x4)
