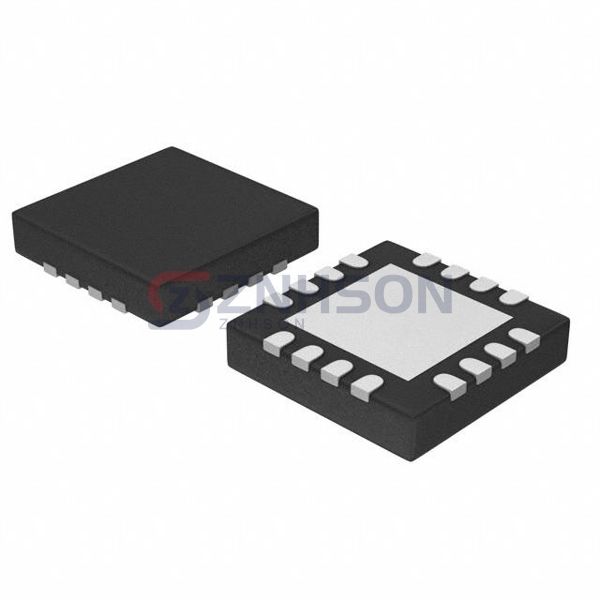

ADP1754ACPZ-1.8-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 1.8V 1.2A 16LFCSP

Datasheet:

ADP1754ACPZ-1.8-R7 Datasheet

$3.31

Available to order

Reference Price (USD)

1,500+

$1.43521

3,000+

$1.33623

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The ADP1754ACPZ-1.8-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 3.6V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.2V @ 1.2A
Current - Output: 1.2A
Current - Quiescent (Iq): 800 µA
Current - Supply (Max): 1.4 mA
PSRR: -
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 16-WQFN Exposed Pad, CSP
Supplier Device Package: 16-LFCSP (4x4)
