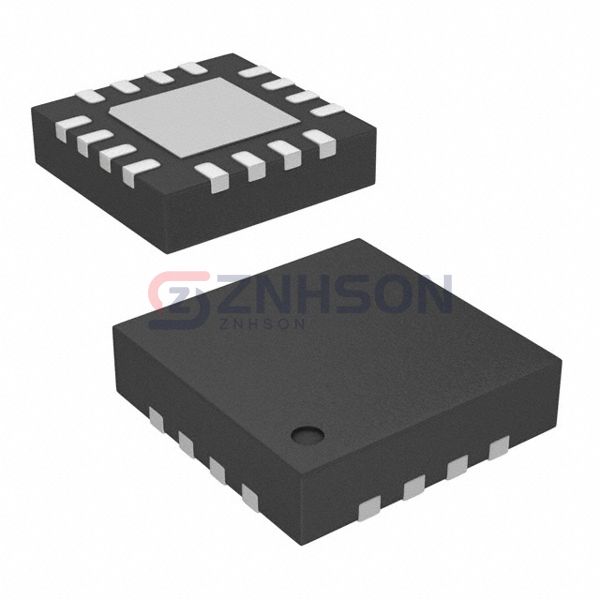

ADP1763ACPZ-1.2-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 1.2V 3A 16LFCSP
$9.71
Available to order
Reference Price (USD)
1,500+
$5.56308
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADP1763ACPZ-1.2-R7, a premium PMIC - Voltage Regulators - Linear IC from Analog Devices Inc., engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The ADP1763ACPZ-1.2-R7 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments.
Linear voltage regulators like the ADP1763ACPZ-1.2-R7 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The ADP1763ACPZ-1.2-R7 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability.
The ADP1763ACPZ-1.2-R7 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 1.98V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.145V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 8 mA
- Current - Supply (Max): 16 mA
- PSRR: 62dB ~ 33dB (10kHz ~ 1MHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Current Limit, Thermal Overload
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
Related Products
Texas Instruments
TPS71733DCKT
Intersil
ISL9014IRJNZ-T
Texas Instruments
LP2980AIM5-5.0
Nisshinbo Micro Devices Inc.
RP130N151B-TR-FE
Texas Instruments
REG113NA-3/3K
ABLIC Inc.
S-13A1H28-U5T1U3
Nisshinbo Micro Devices Inc.

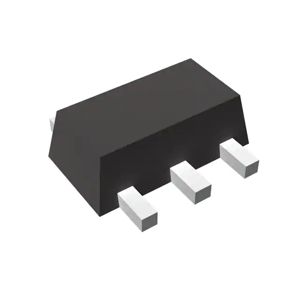

R1515H033B-T1-FE
Texas Instruments

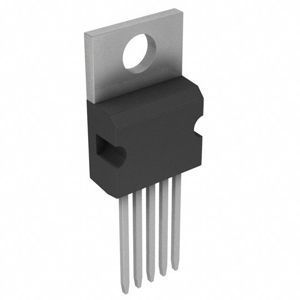

TPS75701KCG3
Infineon Technologies

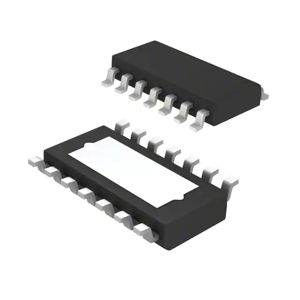

TLE72732EV50XUMA1
