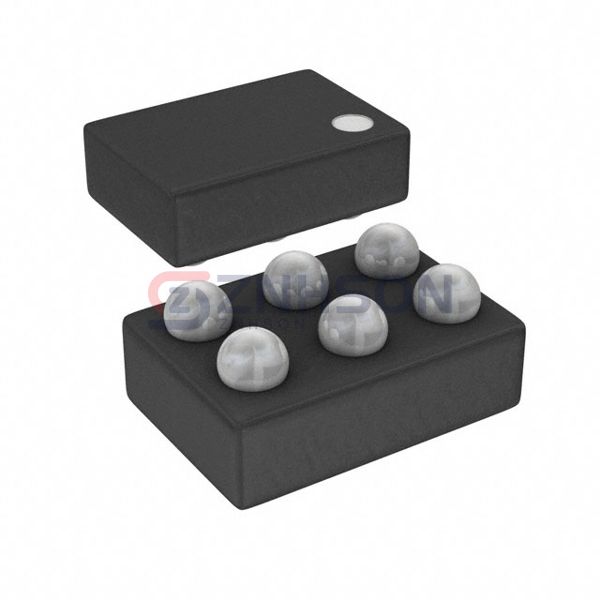

ADP220ACBZ-2623R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 2.3V/2.6V 6WLCSP
$0.80
Available to order
Reference Price (USD)
1+
$0.80000
500+
$0.792
1000+
$0.784
1500+
$0.776
2000+
$0.768
2500+
$0.76
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP220ACBZ-2623R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.3V, 2.6V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -, 0.23V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 120 µA
- Current - Supply (Max): 220 µA
- PSRR: -
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-WFBGA, WLCSP
- Supplier Device Package: 6-WLCSP (1.45x0.95)
