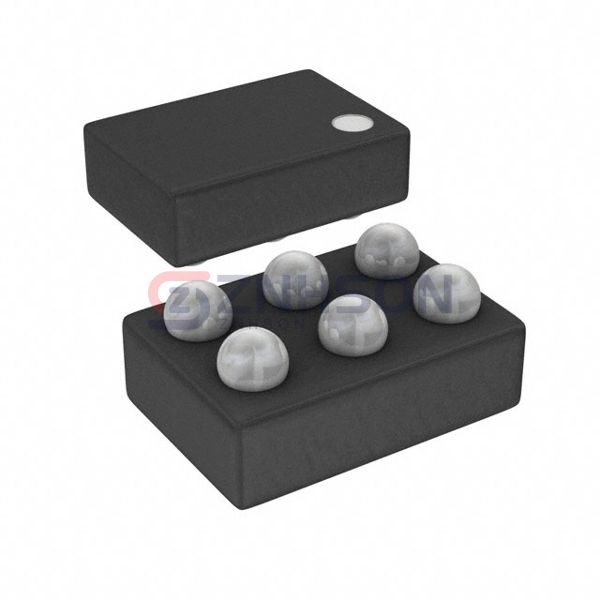

ADP221ACBZ2828-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 2.8V/2.8V 6WLCSP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP221ACBZ2828-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.8V, 2.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.23V @ 200mA, 0.23V @ 200mA
- Current - Output: 200mA, 200mA
- Current - Quiescent (Iq): 120 µA
- Current - Supply (Max): 220 µA
- PSRR: 68dB ~ 40dB (100Hz ~ 1MHz), 68dB ~ 40dB (100Hz ~ 1MHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-WFBGA, WLCSP
- Supplier Device Package: 6-WLCSP (1.45x0.95)
Related Products
ABLIC Inc.
S-817A37APF-CVATFG
onsemi
LP2951ACDR2
Monolithic Power Systems Inc.
MP6401DJ-25BD3-LF-Z
Renesas Electronics America Inc
UPC2912T-E1-AZ
Panasonic Electronic Components
AN79L06M
Microchip Technology
MIC5504-1.8YM5-T5
onsemi
MC78M05CDTRK
Sharp Microelectronics
PQ12RD21J00H
Analog Devices Inc.
LM2931Z-5.0

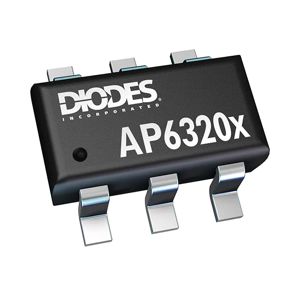

Diodes Incorporated
