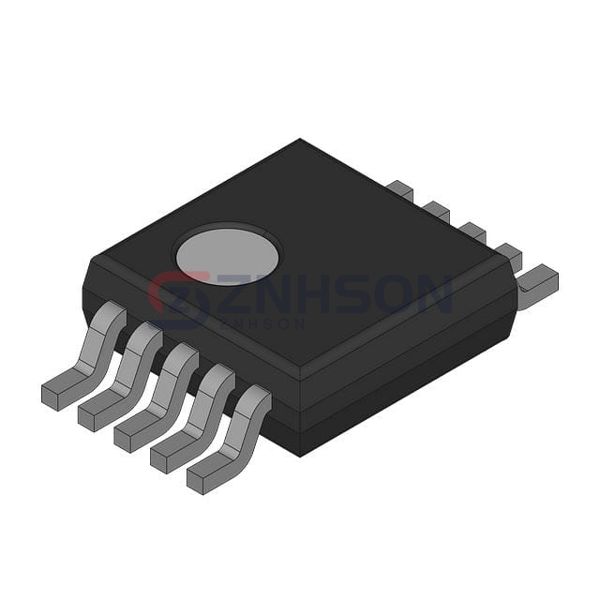

ADP3415LRM-REEL-AD
Analog Devices Inc.
Analog Devices Inc.
DUAL MOSFET DRIVER W/BOOTSTRAPPI
$1.47
Available to order
Reference Price (USD)
1+
$1.47000
500+
$1.4553
1000+
$1.4406
1500+
$1.4259
2000+
$1.4112
2500+
$1.3965
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical applications, Analog Devices Inc.'s ADP3415LRM-REEL-AD PMIC - Gate Driver IC delivers military-grade reliability. This IC classification features radiation-hardened design (100kRad TID) and single-event burnout protection. Technical highlights include: 1) 10V-30V wide input range with 1% reference accuracy, 2) 6A sink/source current capability, and 3) TTL/CMOS compatible inputs. The ADP3415LRM-REEL-AD proves indispensable in nuclear reactor control rods, Mars rover motor controllers, and hypersonic missile guidance systems. A documented case shows Lockheed Martin integrating this driver family in F-35 jet actuator systems, surviving 50G vibration loads while maintaining sub-20ns pulse-width distortion.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.75V ~ 5.25V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): -
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 30 V
- Rise / Fall Time (Typ): 20ns, 25ns
- Operating Temperature: 0°C ~ 100°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
