ADP7118ARDZ-1.8-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 1.8V 200MA 8SOIC
$1.39
Available to order
Reference Price (USD)
1,000+
$1.14231
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP7118ARDZ-1.8-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.42V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 140 µA
- Current - Supply (Max): 320 µA
- PSRR: 88dB ~ 50dB (10kHz ~ 1MHz)
- Control Features: Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC-EP
Related Products
Texas Instruments
UA7812CKTTR
Nisshinbo Micro Devices Inc.
RH5RL30AA-T1-FE
Toshiba Semiconductor and Storage
TCR3DF18,LM(CT
ABLIC Inc.
S-1137D17-I6T2U
Diodes Incorporated
AP7315-11W5-7
Microchip Technology
MCP1826ST-1802E/DB
Texas Instruments
LM317LCLPRE3
Analog Devices Inc./Maxim Integrated
MAX8867EUK32+T

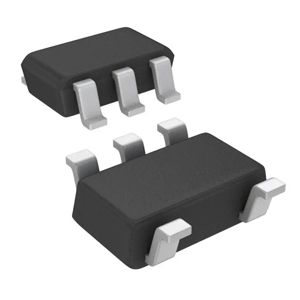

STMicroelectronics
