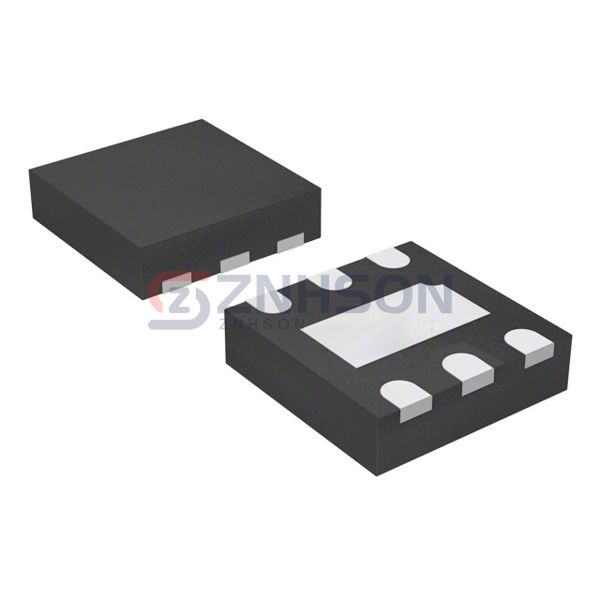

ADP7142ACPZN5.0-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 5V 200MA 6LFCSP
$3.40
Available to order
Reference Price (USD)
3,000+
$1.47763
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP7142ACPZN5.0-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.42V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 140 µA
- Current - Supply (Max): 320 µA
- PSRR: 88dB ~ 50dB (10kHz ~ 1MHz)
- Control Features: Enable, Soft Start
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-UDFN Exposed Pad, CSP
- Supplier Device Package: 6-LFCSP-UD (2x2)
Related Products
ABLIC Inc.
S-1170B46UC-OUFTFU
Linear Technology
LT1521CS8-3.3#PBF
Nisshinbo Micro Devices Inc.
NJU7741F05-TE1
Diodes Incorporated
AP130-35YG-13
Texas Instruments

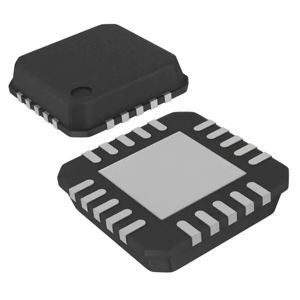

TPS7A5301WQRTKRQ1
onsemi
MC7808CDTT5G
ABLIC Inc.
S-1315C12-M5T1U3
Toshiba Semiconductor and Storage

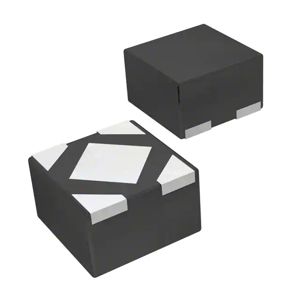

TCR3DM15,LF(SE
Skyworks Solutions Inc.

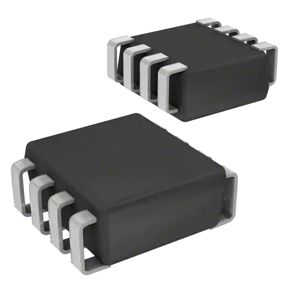

AAT3218IJS-1.2-T1
