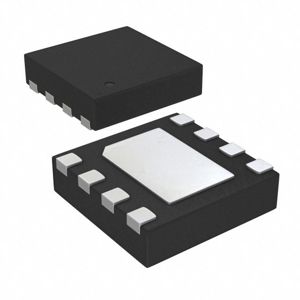

ADP7183ACPZN-R7
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN NEG ADJ 300MA 8LFCSP
$4.89
Available to order
Reference Price (USD)
3,000+
$1.94779
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADP7183ACPZN-R7 from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Negative
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): -5.5V
- Voltage - Output (Min/Fixed): -0.5V
- Voltage - Output (Max): -5V
- Voltage Dropout (Max): 0.22V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 900 µA
- Current - Supply (Max): 7 mA
- PSRR: 85dB ~ 40dB (1kHz ~ 1MHz)
- Control Features: Enable
- Protection Features: Current Limit, Thermal Overload
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP (2x2)
Related Products
ABLIC Inc.
S-11L10B15-M5T1U
Analog Devices Inc.
ADP1706ARDZ-1.5-R7
Microchip Technology
MCP1827-1202E/AT
ABLIC Inc.
S-1333C30-M5T1U3
Nisshinbo Micro Devices Inc.
R1171S331A-E2-FE
Toshiba Semiconductor and Storage
TAR5S35U(TE85L,F)
Infineon Technologies
TLE4296GV50NTSA1
ABLIC Inc.

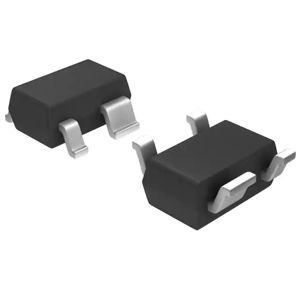

S-13R1C36-N4T1U3
