ADTA144WCAQ-13
Diodes Incorporated
Diodes Incorporated
PREBIAS TRANSISTOR SOT23 T&R 10K
$0.06
Available to order
Reference Price (USD)
1+
$0.05580
500+
$0.055242
1000+
$0.054684
1500+
$0.054126
2000+
$0.053568
2500+
$0.05301
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADTA144WCAQ-13 represents Diodes Incorporated's commitment to innovation in discrete semiconductors. This pre-biased single BJT transistor excels in: Automated test equipment HVAC control boards Robotics servo drives With hFE matching within 10% across production lots, it guarantees consistent performance. Its 50V VCEO rating handles demanding industrial environments with ease.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased + Diode
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 56 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 310 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
Related Products
Rohm Semiconductor
DTC114WUAT106
Diotec Semiconductor
MMBTRC104SS
Rohm Semiconductor
DTA144ECAT116
Toshiba Semiconductor and Storage
RN1131MFV(TL3,T)
onsemi
DTA123JET1G
onsemi
SMUN5214T1G
Nexperia USA Inc.

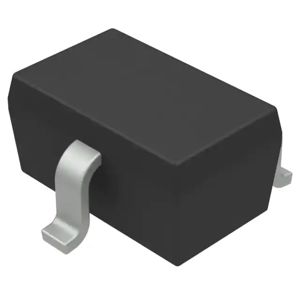

PDTC144WU,115
Diodes Incorporated
DDTC115TUA-7-F
Toshiba Semiconductor and Storage

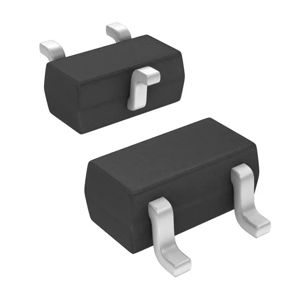

RN1105,LF(CT
