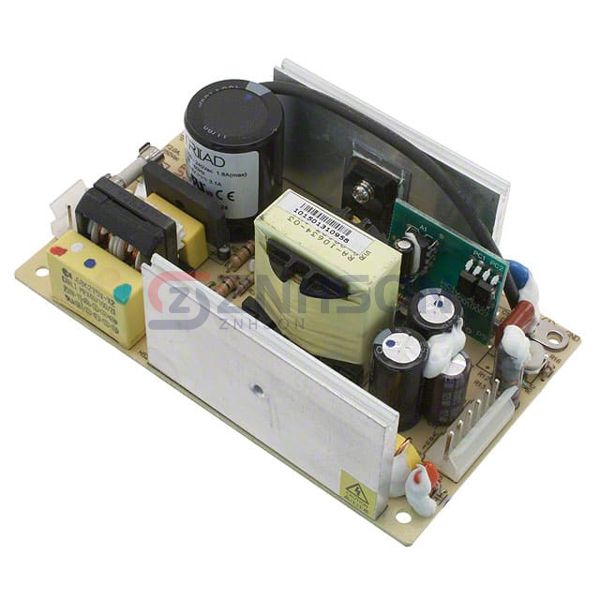

ALS75-24
Triad Magnetics
Triad Magnetics
AC/DC CONVERTER 24V 75W
$30.55
Available to order
Reference Price (USD)
1+
$25.45000
5+
$24.69800
10+
$23.94900
25+
$23.20080
50+
$22.45240
100+
$21.70390
250+
$20.95548
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power supply needs with the ALS75-24 AC DC Converters - Power Supplies by Triad Magnetics. These converters are built for high efficiency and reliability, featuring a wide input range and multiple protection features. The ALS75-24 series is suitable for applications in robotics, gaming consoles, and portable devices. Triad Magnetics combines cutting-edge technology with robust design to deliver power solutions that stand the test of time. Trust the ALS75-24 for all your power conversion requirements.
Specifications
- Product Status: Active
- Type: Open Frame
- Number of Outputs: 1
- Voltage - Input: 90 ~ 260 VAC
- Voltage - Output 1: 24V
- Voltage - Output 2: -
- Voltage - Output 3: -
- Voltage - Output 4: -
- Voltage - Output 5: -
- Voltage - Output 6: -
- Current - Output 1: 3.1 A
- Current - Output 2: -
- Current - Output 3: -
- Current - Output 4: -
- Current - Output 5: -
- Current - Output 6: -
- Power (Watts): 75W
- Applications: ITE (Commercial)
- Voltage - Isolation: 3 kV
- Efficiency: 70%
- Operating Temperature: 0°C ~ 55°C (With Derating)
- Features: Adjustable Output, DC Input Capable, Universal Input
- Mounting Type: Chassis Mount
- Size / Dimension: 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm)
- Approval Agency: TUV, UR
- Standard Number: -
