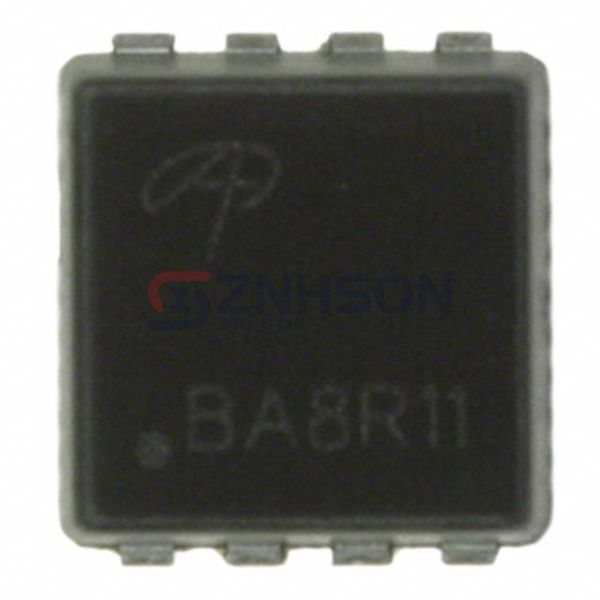

AON6234
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 40V 20A/85A 8DFN
$0.51
Available to order
Reference Price (USD)
3,000+
$0.45375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the AON6234 by Alpha & Omega Semiconductor Inc., a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The AON6234 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Alpha & Omega Semiconductor Inc..
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 85A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.4mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 41 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2805 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 2.3W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN (5x6)
- Package / Case: 8-PowerSMD, Flat Leads
