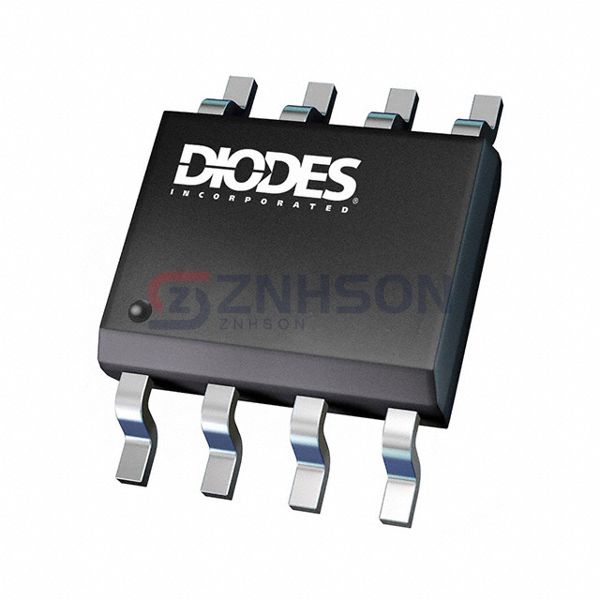

AP2204MP-ADJTRG1
Diodes Incorporated
Diodes Incorporated
IC REG LINEAR POS ADJ 150MA 8SO
$0.56
Available to order
Reference Price (USD)
4,000+
$0.17856
8,000+
$0.16704
12,000+
$0.15552
28,000+
$0.14746
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated's AP2204MP-ADJTRG1 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the AP2204MP-ADJTRG1 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Last Time Buy
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 24V
- Voltage - Output (Min/Fixed): 1.24V
- Voltage - Output (Max): 22V
- Voltage Dropout (Max): 0.5V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 50 µA
- Current - Supply (Max): 2.5 mA
- PSRR: 60dB (100Hz ~ 1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SO-EP
Related Products
Nisshinbo Micro Devices Inc.
RP130N331B-TR-YE
ABLIC Inc.
S-1206B34-M3T1U
Analog Devices Inc.
ADP3308ART-3.3-RL
onsemi
NCV8716MT30TBG
ABLIC Inc.
S-1200B49-M5T1G
ABLIC Inc.
S-13R1A18-M5T1U3
onsemi

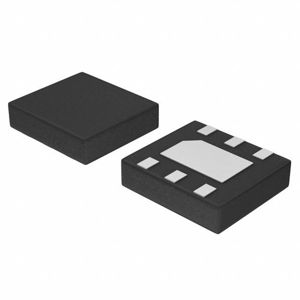

NCP5661MN18T2G
onsemi

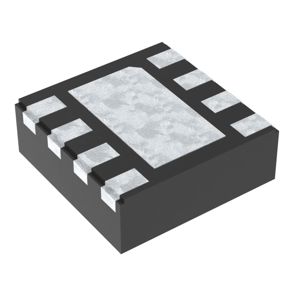

NCV8177AMTW330TCG
